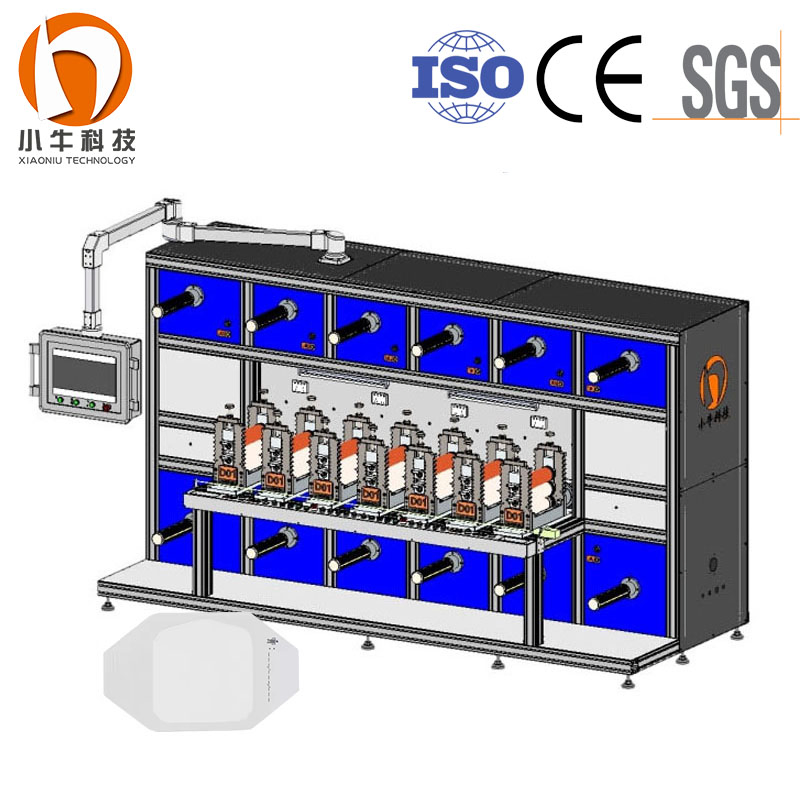

Waterproof Wound Bandage Adhesive Patches Surgical IV Shield Transparent Film Dressing Producing Equipment
Basic Information
Model NO.XN7
Control SystemFully Automatic
MaterialAluminum Alloy, Stainless Steel
Power17.5kw
VoltageCustomized
Core ComponentsPLC, Engine, Bearing, Gearbox, Motor, Gear
Feed Width250mm, 350mm or Customized
Web Max. Dia400mm
Drive MotorServo
Cutting Precision±0.1
Key Selling PointsHigh Productivity
Production Capacity200PCS/Year
Product Overview

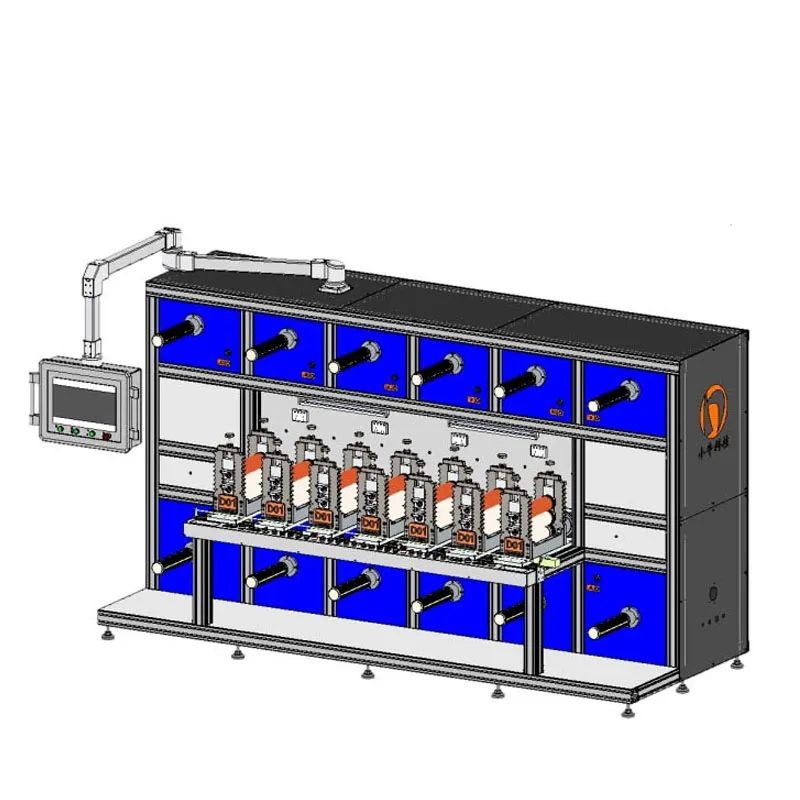

This 7-station rotary die-cutting machine, driven by servo motors, offers independence and integration, supporting diverse functions like synchronous, asynchronous, speed ratio, and constant tension, making it an automatic, highly intelligent universal machine.
Rotary Die-Cutting Applications
✓
Medical consumables & Dressings
✓
3C & Automotive Electronics
✓
New Energy & Consumer Goods
Machine Functions & Advantages
1
Continuous roll cutting with 5-60m/min efficiency
2
±0.1mm precision, stable & consistent processing
3
Multi-station design, integrated multi-process compounding
4
Full-auto operation with intelligent tension control
Product Gallery

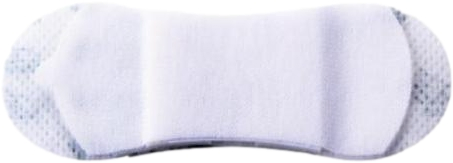

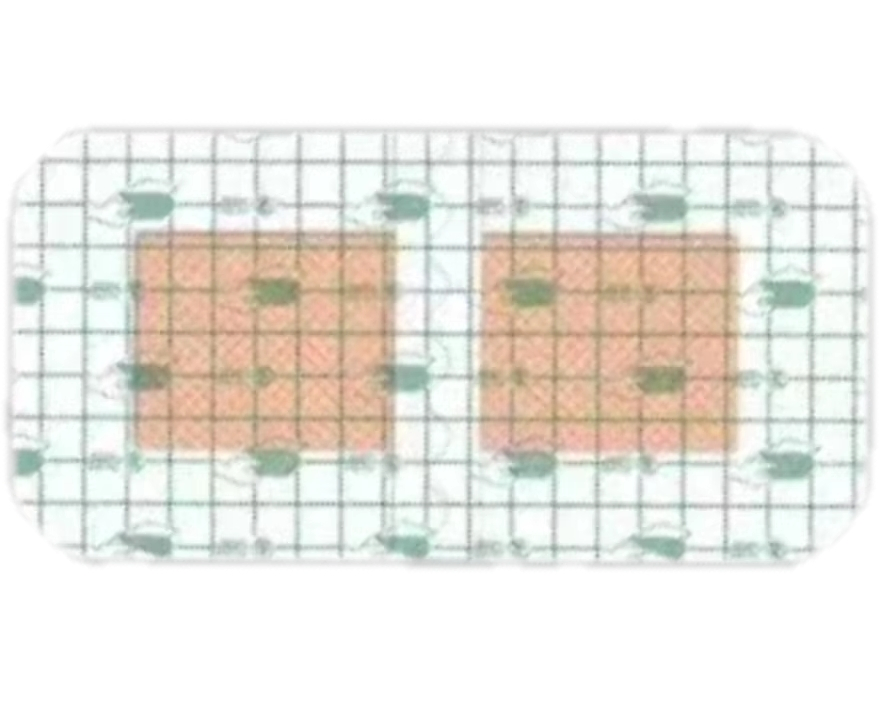

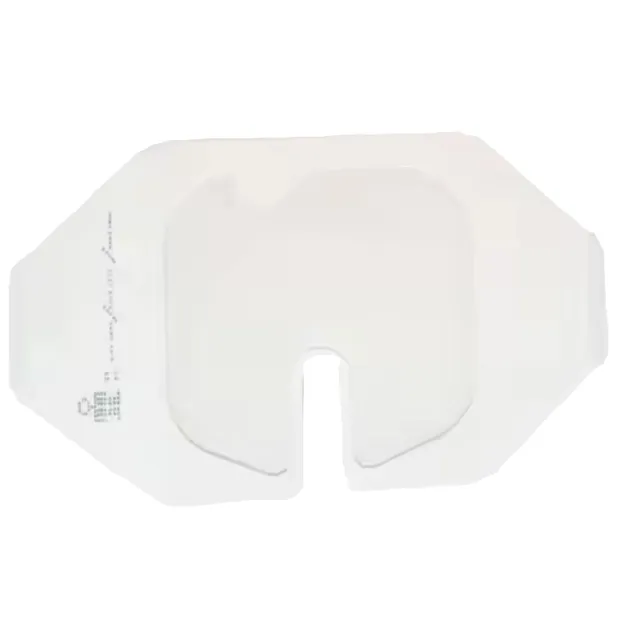

I.V. dressing
foam dressing

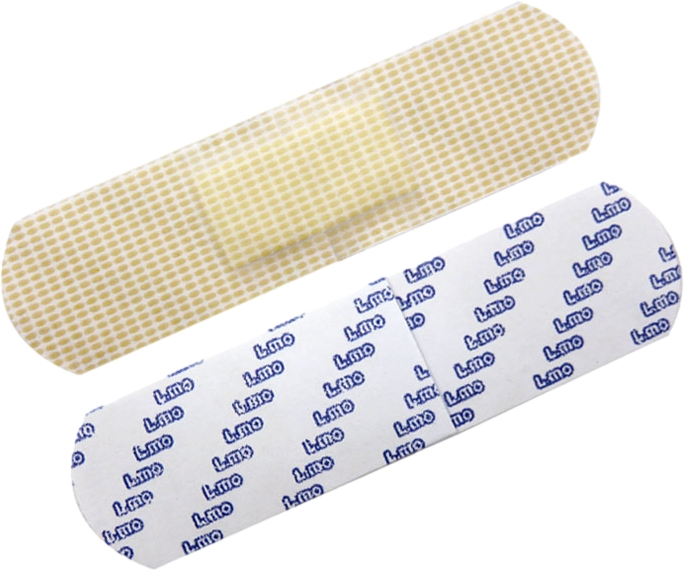

first aid

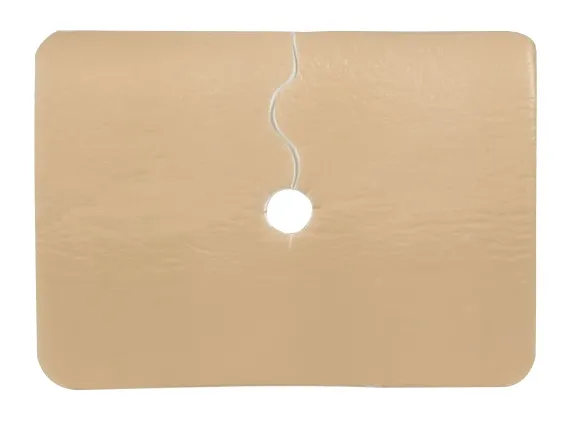

tracheostomy dressings

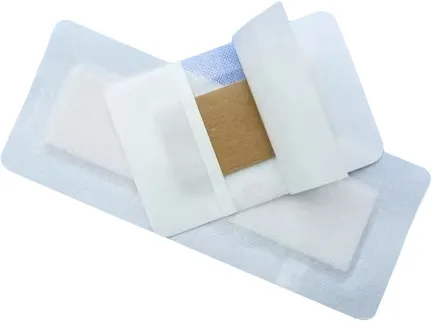

infusion dressings

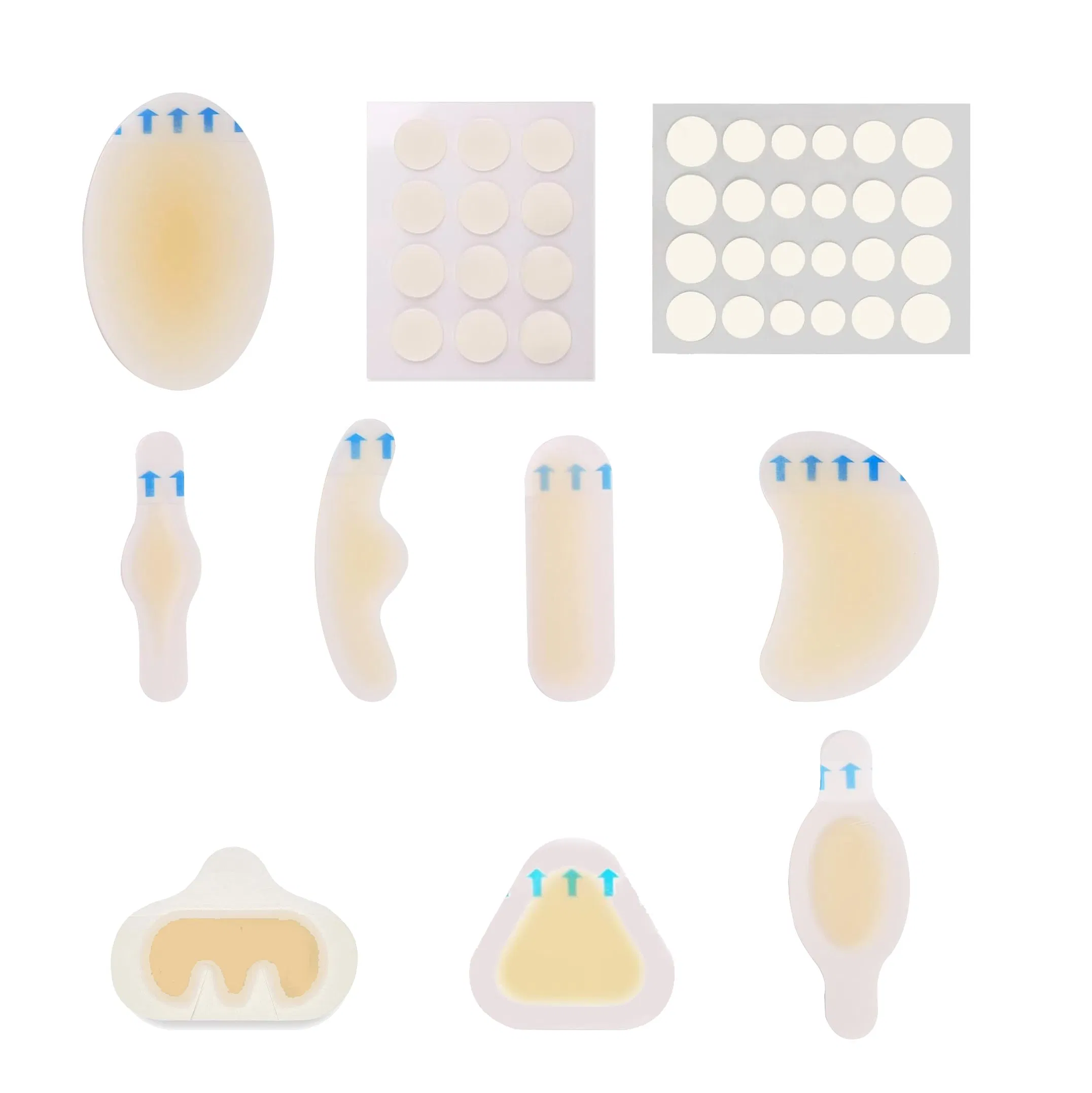

hydrocolloid dressings
Technical Specifications
| Power (KW) | 17.5kw |
| Working Voltage (V) | AC380 |
| Feeding Width (mm) | 250mm or 350mm |
| Max. Diameter (mm) | 400mm |
| Die Cutting Precision (mm) | ±0.1 |
| Max Speed | 60m/min |
Component Details

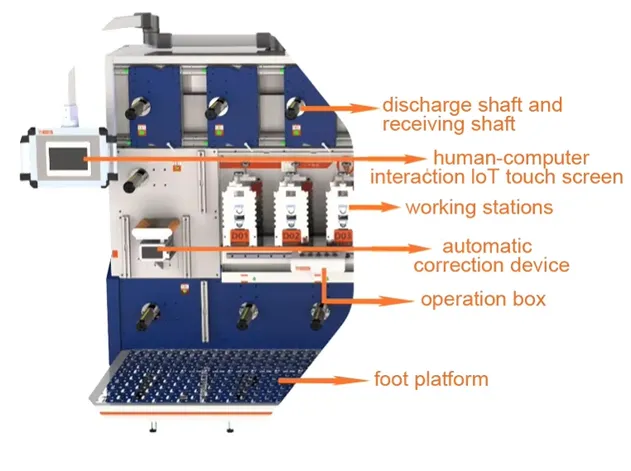

Main parts

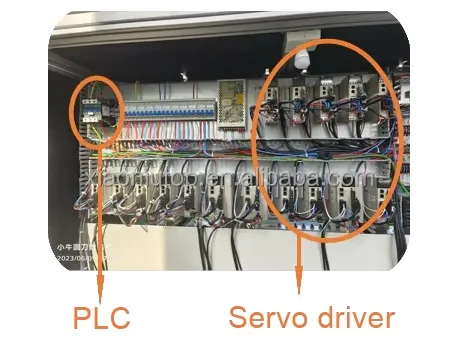

Electronics

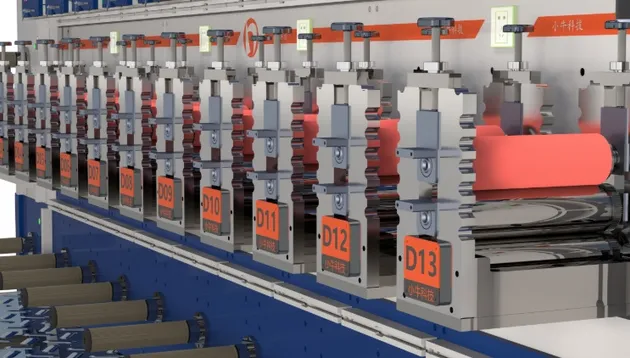

Stations
After Sales Service
Standard Warranty: 1 year.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.
Frequently Asked Questions
What materials can be processed by this machine?
The machine is designed for all flexible substrates, including medical consumables, dressings, foam, transparent films, and electronic components.
What is the cutting precision of the rotary die-cutter?
The machine offers high-precision processing with a die-cutting precision of ±0.1mm, ensuring stable and consistent production.
Can the machine be customized for specific products?
Yes, our R&D team can customize machines to your specific requirements, including adding stations or changing cutters to accommodate various medical products.
What control system does the equipment use?
The equipment utilizes a high-quality PLC servo control system, specifically using OMRON brand components for reliability and intelligence.
How long is the delivery time and warranty?
Delivery typically occurs within 20 days post-design confirmation. We provide a one-year warranty and lifetime paid maintenance services.
Is on-site training available?
Yes, engineers are available for on-site training, debugging, and setup at your location to ensure smooth operation.
